Installing bareos on Centos 7
March 10, 2017

Installing bareos on Centos 7

Posted on March 10, 2017  •  4 minutes  • 645 words  •  Suggest Changes

Bareos (Backup Archiving Recovery Open Sourced) is a backup solution, its a fork of the better known Bacula. At work we use a commercial package called retrospect, it has proven itself in many situations, never the less, its good to look out what free and open-source alternatives are out there. Bareos caught my eye in particular, cause they seem very active in the FOSS community (see fosdem 2017), always a good sign.

Bareos has a huge documentation * , sadly not everything is up-to-date or easy to understand for beginners like myself. The 500+ page manual is also not something you browse through quickly. That’s why I will post my guide(s) here, not cause the documentation is incomplete or perhaps not up-to-date. But to fellow sysadmin’s looking for a quick run at bareos without having to read through all the documentation. Like any open-source project, the more people who are involved the better the chance a project can survive on the long term.

Installation on Centos 7 is a blast. However due to the many moving parts, its good to keep your head in the game.

First start with adding the epel repository :

yum install epel-release
yum install wget nano

Follow by adding the official bareos repo : (you could also copy-paste this link)

wget -O /etc/yum.repos.d/bareos.repo http://download.bareos.org/bareos/release/latest/CentOS_7/bareos.repo

You are now ready to install the packages, I chose for mariadb as I am most familiar with it :

yum install bareos bareos-database-mysql bareos-webui mariadb-server

Next we need to setup mariadb and setup auto-login for root.  Let’s start mariadb, and configure it to start at boot :

systemctl enable mariadb
systemctl start mariadb

next run the mysql_secure_install script provided :

mysql_secure_installation

next create a file :

nano ~/.my.cnf

with content : (change PASSWORD)

[client]
host=localhost
user=root
password=PASSWORD

Then we can install bareos schema using the provided MySQL scripts :

/usr/lib/bareos/scripts/create_bareos_database
/usr/lib/bareos/scripts/make_bareos_tables
/usr/lib/bareos/scripts/grant_bareos_privileges

This should result in something like :

[root@server ~]# /usr/lib/bareos/scripts/create_bareos_database
Creating mysql database
Creating of bareos database succeeded.
[root@server ~]# /usr/lib/bareos/scripts/make_bareos_tables
Making mysql tables
Creation of Bareos MySQL tables succeeded.
[root@server ~]# /usr/lib/bareos/scripts/grant_bareos_privileges
Granting mysql tables
Privileges for user bareos granted ON database bareos.

Now we are ready to start the services; since we installed the webui its good to start httpd as well, in case it was already running, reload/restart it.

systemctl start bareos-dir
systemctl start bareos-sd
systemctl start bareos-fd
systemctl start httpd

The web-bareos-gui should already be available now under http://ip/bareos-webui/ the configuration for that can be found in /etc/httpd/conf.d/bareos-webui.conf

In my case, I had to let selinux security know that it could connect :

setsebool -P httpd_can_network_connect on

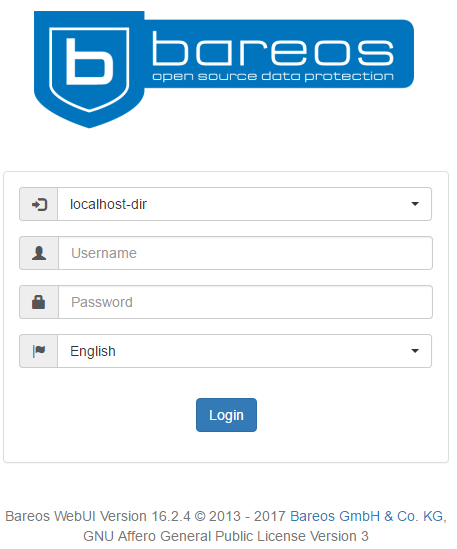

The web interface looks like :

web login of bareos



What login you ask, ah, we have not yet created it so let’s go ahead and create a new user. Start the bareos-console :

bconsole

add user

configure add console name=admin password=password123 profile=webui-admin

That gives something along the line :

[root@bareos ~]# bconsole
Connecting to Director localhost:9101
 Encryption: PSK-AES256-CBC-SHA
1000 OK: bareos-dir Version: 18.2.5 (30 January 2019)
bareos.org build binary
bareos.org binaries are UNSUPPORTED by bareos.com.
Get official binaries and vendor support on https://www.bareos.com
You are connected using the default console

Enter a period to cancel a command.
*configure add console name=admin password=PASSWORD profile=webui-admin
Created resource config file "/etc/bareos/bareos-dir.d/console/admin.conf":
Console {
  Name = admin
  Password = PASSWORD
  Profile = webui-admin
}

Note : Can’t login ? Try adding this to the config :

nano /etc/bareos/bareos-dir.d/console/admin.conf
TLS Enable = No

resulting in a total file :

Console {
  Name = admin
  Password = PASSWORD
  Profile = webui-admin
  TLS Enable = No
}

Restart the director to be sure :

systemctl restart bareos-dir

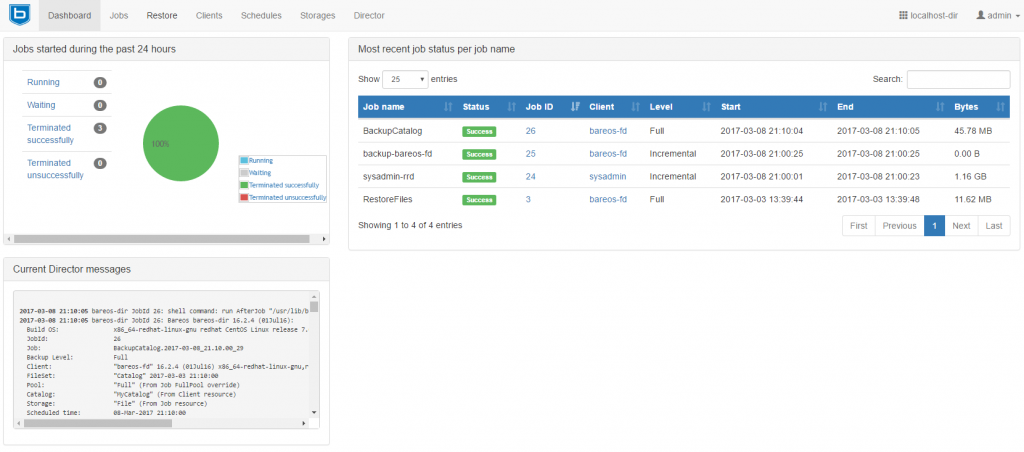

And that’s it! After logging in on the web interface you will see something like :



Next we will add our first client and create a job for it to run on regular base.
